30.12mm Integral Sintering Sleeve Single Pass Honing Tools Diamond Cylinder Hone

Honing Sleeve Single Pass Honing Tools Integral Sintering Sleeve

The single stroke honing tool is also known as a single pass honing tool that incorporates a super abrasive sleeve mounted on a tapered mandrel for precision bore sizing and finishing. Each individual piece of this diamond tool is designed to be matched with corresponding honing machines. According to differences in the bore diameter, customers can choose from our existing models of honing tools, or customize a new honing tool.

The single stroke honing tool works for finishing bores at a minimum of Φ2mm, and is all equipped with thrust pads. In addition, depending on honing and finishing processes, this bore finishing tool come in four types: vertical honing tool, horizontal honing tool, vertical cylinder honing tool, and horizontal cylinder honing tool. Specific product descriptions are as follows.

straight groove

spiral groove

Honing machine

workpiece information:

Final dia after honing 30.12 + 0.01

Before honing dia 30.06

Ra0.4

Through bore

Cast iron

Bore length 180 mm

Hydraulic housing

Vertical machining centre

Low volume production

recommind tool:

mandrel: JHG-6/30.12-160/180

sleeve: P1-30.12-D181

            P2-30.12-D181

            P3-30.12-D151

            P4-30.12-D76

            P5-30.12-D46

            P6-30.12-D25

diamond cylinder hone

small bore hone tool

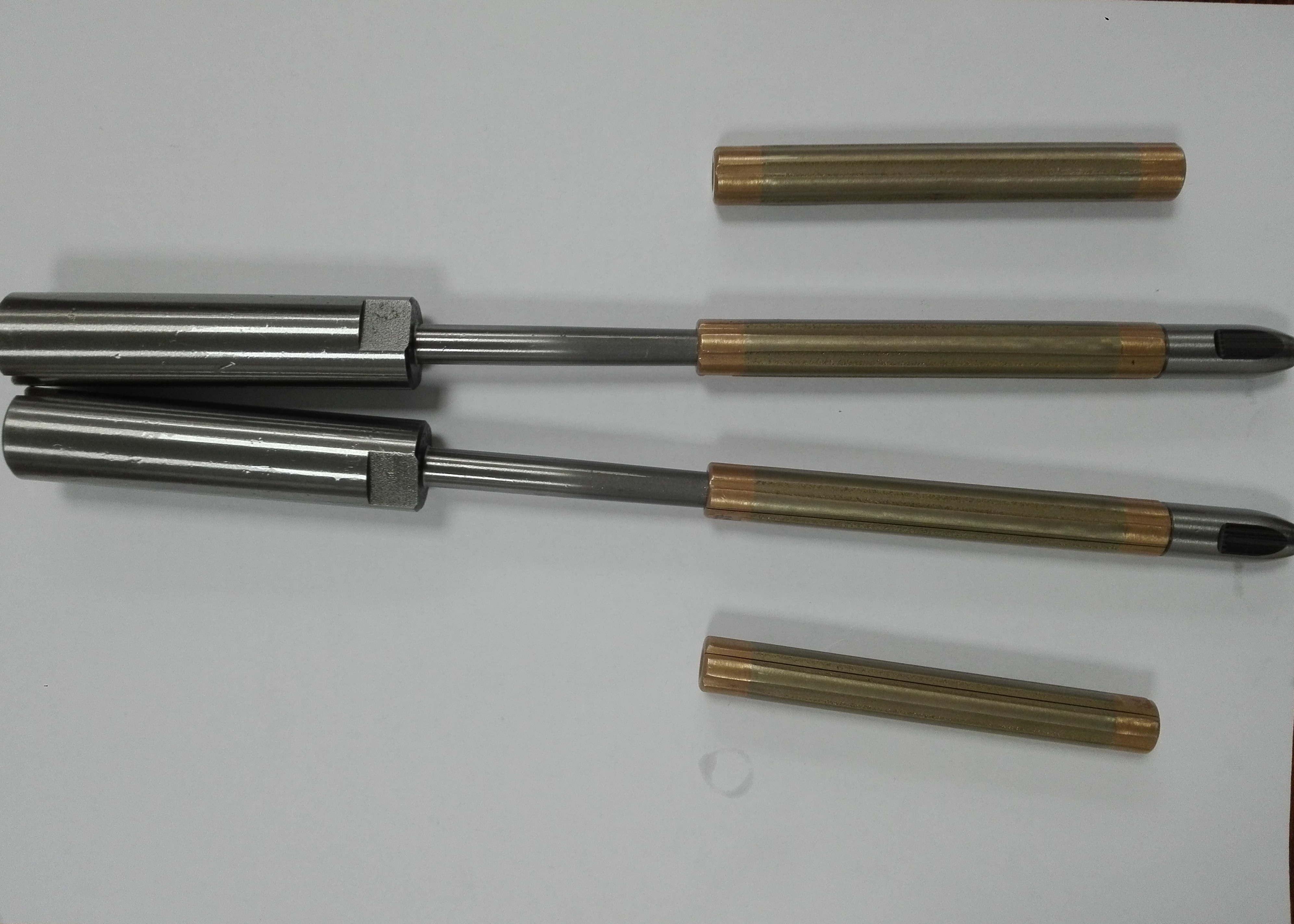

30.12mm Integral Sintering Sleeve Single Pass Honing Tools Diamond Cylinder Hone Images
